SinglePairShortestPath class. More...

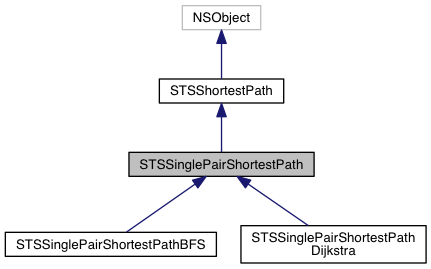

Inheritance diagram for STSSinglePairShortestPath:

Collaboration diagram for STSSinglePairShortestPath:

Instance Methods
(STSOidList *)	- getPathAsNodes
	Gets the shortest path between the source node and the destination node as an ordered set of nodes. More...

(STSOidList *)	- getPathAsEdges
	Gets the shortest path between the source node and the destination node as an ordered set of edges. More...

(double)	- getCost
	Gets the cost of the shortest path. More...

(BOOL)	- exists
	Returns TRUE If a path exists or FALSE otherwise.

(void)	- setMaximumHops:
	Sets the maximum hops restriction. More...

(void)	- addEdgeType:dir:
	Allows for traversing edges of the given type. More...

(void)	- addAllEdgeTypes:
	Allows for traversing all edge types of the graph. More...

(void)	- addNodeType:
	Allows for traversing nodes of the given type. More...

(void)	- addAllNodeTypes
	Allows for traversing all node types of the graph.

(void)	- excludeNodes:
	Set which nodes can't be used. More...

(void)	- excludeEdges:
	Set which edges can't be used. More...

(void)	- run
	Runs the algorithm. More...

(void)	- close
	Closes the ShortestPath instance. More...

(BOOL)	- isClosed
	Check if the ShortestPath instance is closed.

Detailed Description

SinglePairShortestPath class.

Classes implementing this abstract class solve the shortest path problem in a graph from a given source node and to a given destination node.

Check out the 'Algorithms' section in the SPARKSEE User Manual for more details on this.

Author: Sparsity Technologies http://www.sparsity-technologies.com

Method Documentation

- (void) addAllEdgeTypes: (enum STSEdgesDirection) dir

Allows for traversing all edge types of the graph.

Parameters

dir	[in] Edge direction.

- (void) addEdgeType:	(int)	type
dir:	(enum STSEdgesDirection)	dir

Allows for traversing edges of the given type.

Parameters

type	[in] Edge type.
dir	[in] Edge direction.

- (void) addNodeType: (int) type

Allows for traversing nodes of the given type.

Parameters

type null

- (void) close

Closes the ShortestPath instance.

It must be called to ensure the integrity of all data.

- (void) excludeEdges: (STSObjects *) edges

Set which edges can't be used.

This will replace any previously specified set of excluded edges. Should only be used to exclude the usage of specific edges from allowed edge types because it's less efficient than not allowing an edge type.

Parameters

edges [in] A set of edge identifiers that must be kept intact until the destruction of the class.

- (void) excludeNodes: (STSObjects *) nodes

Set which nodes can't be used.

This will replace any previously specified set of excluded nodes. Should only be used to exclude the usage of specific nodes from allowed node types because it's less efficient than not allowing a node type.

Parameters

nodes [in] A set of node identifiers that must be kept intact until the destruction of the class.

- (double) getCost

Gets the cost of the shortest path.

The cost for unweighted algorithms is the number of hops of the shortest path. For weighted algoritms, the cost is the sum of the costs of the edges of the shortest path.
