#include <CommunitiesSCD.h>

Inheritance diagram for CommunitiesSCD:

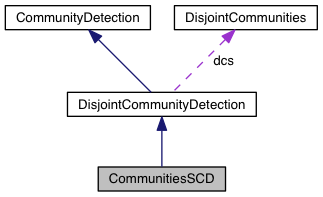

Collaboration diagram for CommunitiesSCD:

Public Member Functions
	CommunitiesSCD (sparksee::gdb::Session &session)
	Creates a new instance of `CommunitiesSCD`.
virtual	~CommunitiesSCD ()
	Destructor.
void	SetLookAhead (sparksee::gdb::int32_t lookahead)
	Sets the size of the lookahead iterations to look (5 by default).
void	Run ()
	Executes the algorithm.
virtual void	AddEdgeType (sparksee::gdb::type_t type)
	Allows connectivity through edges of the given type.
virtual void	AddAllEdgeTypes ()
	Allows connectivity through all edge types of the graph.
DisjointCommunities *	GetCommunities ()
	Returns the results generated by the execution of the algorithm.
void	SetMaterializedAttribute (const std::wstring &attributeName)
	Creates a new common attribute type for all node types in the graph in order to store, persistently, the results related to the disjoint communities found while executing this algorithm.
virtual void	AddNodeType (sparksee::gdb::type_t type)
	Allows connectivity through nodes of the given type.
virtual void	AddAllNodeTypes ()
	Allows connectivity through all node types of the graph.
virtual void	ExcludeNodes (sparksee::gdb::Objects &nodes)
	Set which nodes can't be used.
virtual void	ExcludeEdges (sparksee::gdb::Objects &edges)
	Set which edges can't be used.
virtual void	IncludeNodes (sparksee::gdb::Objects &nodes)
	Set additional nodes that can be used.
virtual void	IncludeEdges (sparksee::gdb::Objects &edges)
	Set additional edges that can be used.

Protected Types
typedef std::map< sparksee::gdb::type_t, sparksee::gdb::EdgesDirection >	EdgeTypes_t
	A type definition to store allowed edge types.
typedef std::vector< sparksee::gdb::type_t >	NodeTypes_t
	A type definition to store allowed node types.

Protected Member Functions
void	AddEdgeType (sparksee::gdb::type_t type, sparksee::gdb::EdgesDirection direction)
	Allows connectivity through edges of the given type.
void	AddAllEdgeTypes (sparksee::gdb::EdgesDirection direction)
	Allows connectivity through all edge types of the graph.
void	SetCommunity (sparksee::gdb::oid_t idNode)
	Assigns the current community to the given node.
void	AssertNotCommunityAttribute (const std::wstring &attributeName)
	Check that the given attribute name is not already in use.
void	CreateGlobalPersistentAttribute (const std::wstring &attributeName)
	Set a new persistent global attribute to store the disjoint communities information.
void	CreateGlobalTransientAttribute ()
	Set a new temporary global attribute to store the disjoint communities information.
void	RemoveGlobalAttribute ()
	Removes the global attribute where the disjoint communities information is stored.
void	AssertAddedEdges ()
	Check that edges had been added.
void	AssertAddedNodes ()
	Check that nodes had been added.
void	AssertNotComputed ()
	Check that the connectivity had not been calculated yet.
void	SetNodesNotVisited ()
	Set all the selected nodes in nodesNotVisited.
void	AssertComputed ()
	Check that the communities had been calculated.
void	AssertEdgeType (sparksee::gdb::type_t edgetype)
	Check that the given edge type is valid.
void	AssertNodeType (sparksee::gdb::type_t nodetype)
	Check that the given node type is valid.
sparksee::gdb::bool_t	IsNodeTypeAllowed (sparksee::gdb::oid_t nodeId)
	Check if the given node has an allowed type.
sparksee::gdb::bool_t	IsEdgeTypeAllowed (sparksee::gdb::oid_t edgeId)
	Check if the given edge has an allowed type.
sparksee::gdb::bool_t	IsNodeAllowed (sparksee::gdb::oid_t nodeId)
	Check if the given node is allowed (by type or by explicit inclusion).
sparksee::gdb::bool_t	IsEdgeAllowed (sparksee::gdb::oid_t edgeId)
	Check if the given edge is allowed (by type or by explicit inclusion).
sparksee::gdb::bool_t	IsNodeExcluded (sparksee::gdb::oid_t node)
	Check if the given node is forbidden.
sparksee::gdb::bool_t	IsEdgeExcluded (sparksee::gdb::oid_t edge)
	Check if the given edge is forbidden.
sparksee::gdb::bool_t	IsNodeIncluded (sparksee::gdb::oid_t node)
	Check if the given node is EXPLICITLY allowed using the include set.
sparksee::gdb::bool_t	IsEdgeIncluded (sparksee::gdb::oid_t edge)
	Check if the given edge is EXPLICITLY allowed using the include set.

Protected Attributes
sparksee::gdb::attr_t	attrCommunity
	common attribute where the connected component information is stored.
std::wstring	attrCommunityName
	name of the common attribute where the connected component information is stored.
sparksee::gdb::int64_t	actualCommunity
	Current community identifier.
sparksee::gdb::bool_t	matResults
	Materialized results.
DisjointCommunities *	dcs
	The calculated communities information.
sparksee::gdb::Session *	sess
	Session.
sparksee::gdb::Graph *	graph
	Graph.
EdgeTypes_t	edgeTypes
	Allowed edge types.
std::vector< sparksee::gdb::type_t >	nodeTypes
	Allowed node types.
sparksee::gdb::Objects *	nodesNotVisited
	Identifiers of the nodes not visited.
sparksee::gdb::bool_t	computed
	True if the connectivity has been calculated.
sparksee::gdb::Objects *	excludedNodes
	The set of excluded nodes.
sparksee::gdb::Objects *	excludedEdges
	The set of excluded edges.
sparksee::gdb::Objects *	includedNodes
	The set of explicitly included nodes.
sparksee::gdb::Objects *	includedEdges
	The set of explicitly included edges.

Detailed Description

CommunitiesSCD class.

Implementation of the community detection algorithm "Scalable Community Detection" based on the paper "High quality, scalable and parallel community detection for large real graphs" by Arnau Prat-Perez, David Dominguez-Sal, Josep-Lluis Larriba-Pey - WWW 2014.

The purpose of this algorithm is to find disjoint communities in an undirected graph or in a directed graph which will be considered as an undirected one.

It is possible to set some restrictions after constructing a new instance of this class and before running it in order to limit the results.

After the execution, we can retrieve the results stored in an instance of the DisjointCommunities class using the getCommunities method.

Check out the 'Algorithms' section in the SPARKSEE User Manual for more details on this.

Author: Sparsity Technologies http://www.sparsity-technologies.com

Constructor & Destructor Documentation

◆ CommunitiesSCD()

CommunitiesSCD::CommunitiesSCD ( sparksee::gdb::Session & session )

Creates a new instance of CommunitiesSCD.

After creating this instance is required to indicate the set of edge types and the set of node types which will be navigated through while traversing the graph in order to find the communities.

Parameters

session [in] Session to get the graph from and calculate the communities

Referenced by Run().

Member Function Documentation

◆ AddAllEdgeTypes() [1/2]

void CommunityDetection::AddAllEdgeTypes ( sparksee::gdb::EdgesDirection direction )

protectedinherited

Allows connectivity through all edge types of the graph.

Parameters

d	[in] Edge direction.

◆ AddAllEdgeTypes() [2/2]

virtual void DisjointCommunityDetection::AddAllEdgeTypes ( )

virtualinherited

Allows connectivity through all edge types of the graph.

The edges can be used in Any direction.

◆ AddEdgeType() [1/2]

void CommunityDetection::AddEdgeType	(	sparksee::gdb::type_t	type,
		sparksee::gdb::EdgesDirection	direction )

protectedinherited

Allows connectivity through edges of the given type.

Parameters

t	[in] Edge type.
d	[in] Edge direction.

◆ AddEdgeType() [2/2]

virtual void DisjointCommunityDetection::AddEdgeType ( sparksee::gdb::type_t type )

virtualinherited

Allows connectivity through edges of the given type.

The edges can be used in Any direction.

Parameters

type	[in] Edge type.

◆ ExcludeEdges()

virtual void CommunityDetection::ExcludeEdges ( sparksee::gdb::Objects & edges )

virtualinherited

Set which edges can't be used.

This will replace any previously specified set of excluded edges. Should only be used to exclude the usage of specific edges from allowed edge types because it's less efficient than not allowing an edge type.

Parameters

edges [in] A set of edge identifiers that must be kept intact until the destruction of the class.

◆ ExcludeNodes()

virtual void CommunityDetection::ExcludeNodes ( sparksee::gdb::Objects & nodes )

virtualinherited

Set which nodes can't be used.

This will replace any previously specified set of excluded nodes. Should only be used to exclude the usage of specific nodes from allowed node types because it's less efficient than not allowing a node type.

Parameters

nodes [in] A set of node identifiers that must be kept intact until the destruction of the class.

◆ GetCommunities()

DisjointCommunities * DisjointCommunityDetection::GetCommunities ( )

inherited

Returns the results generated by the execution of the algorithm.

These results contain information related to the disjoint communities found as the number of different components, the set of nodes contained in each component or many other data.

Returns: Returns an instance of the class DisjointCommunities which contain information related to the disjoint communities found.

◆ IncludeEdges()

virtual void CommunityDetection::IncludeEdges ( sparksee::gdb::Objects & edges )

virtualinherited

Set additional edges that can be used.

This will replace any previously specified set of include edges. Using this optional method adds valid edges to the edges of any edge type explicitly set as a valid type. Should only be used to include specific small sets of edges because it's less efficient than just using an edge type. For any edge to be used, both nodes must be also valid.

Parameters

edges [in] A set of edge identifiers that must be kept intact until the destruction of the class.

◆ IncludeNodes()

virtual void CommunityDetection::IncludeNodes ( sparksee::gdb::Objects & nodes )

virtualinherited

Set additional nodes that can be used.

This will replace any previously specified set of include nodes. Using this optional method adds valid nodes to the nodes of any node type explicitly set as a valid type. Should only be used to include specific small sets of nodes because it's less efficient than just using a node type.

Parameters

nodes [in] A set of node identifiers that must be kept intact until the destruction of the class.

◆ SetLookAhead()

void CommunitiesSCD::SetLookAhead ( sparksee::gdb::int32_t lookahead )

Sets the size of the lookahead iterations to look (5 by default).

Parameters

lookahead [in] Number of iterations. It must be positive or zero.

◆ SetMaterializedAttribute()

void DisjointCommunityDetection::SetMaterializedAttribute ( const std::wstring & attributeName )

inherited

Creates a new common attribute type for all node types in the graph in order to store, persistently, the results related to the disjoint communities found while executing this algorithm.

Whenever the user wants to retrieve the results, even when the graph has been closed and opened again, it is only necessary to create a new instance of the class DisjointCommunities indicating the graph and the name of the common attribute type which stores the results. This instance will have all the information related to the disjoint communities found in the moment of the execution of the algorithm that stored this data.

It is possible to run the algorithm without specifying this parameter in order to avoid materializing the results of the execution.

Parameters

attributeName [in] The name of the common attribute type for all node types in the graph which will store persistently the results generated by the execution of the algorithm.

◆ SetNodesNotVisited()

void CommunityDetection::SetNodesNotVisited ( )

protectedinherited

Set all the selected nodes in nodesNotVisited.

That's all the nodes of the allowed node types but not the excluded ones.

The documentation for this class was generated from the following file:

CommunitiesSCD.h
